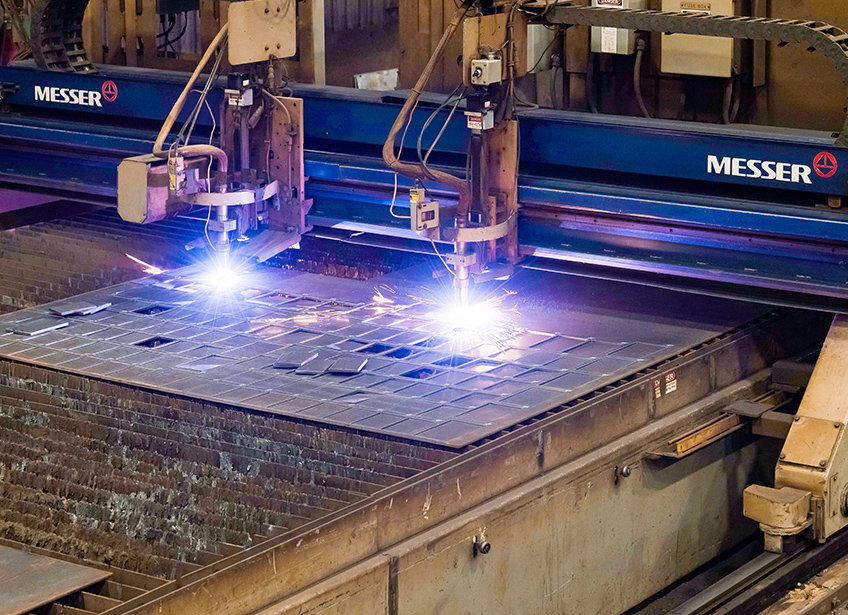

Utilizing high definition and nitrogen plasma cutting systems, our capabilities handle plates up to 14 inches thick and lengths up to 80 feet of continuous machine travel.
Questions? Contact one of our helpful sales managers.
| Material | Thickness | Tolerance |
|---|---|---|
| Carbon Steel Sheet | 16 ga - 1 1⁄4″ | ±1⁄16″ |
| Aluminum Sheet & Plate | Less than 1″ | ±1⁄16″ |
| 11⁄4″ | ±3⁄16″ |
In addition to the tolerances listed, a slight bevel of up to 16° may occur.
| Thickness | Bevel |
|---|---|
| 1⁄2″ | 5⁄32″ |
| 1″ | 8⁄32″ |
| 11⁄4″ | 7⁄16″ |

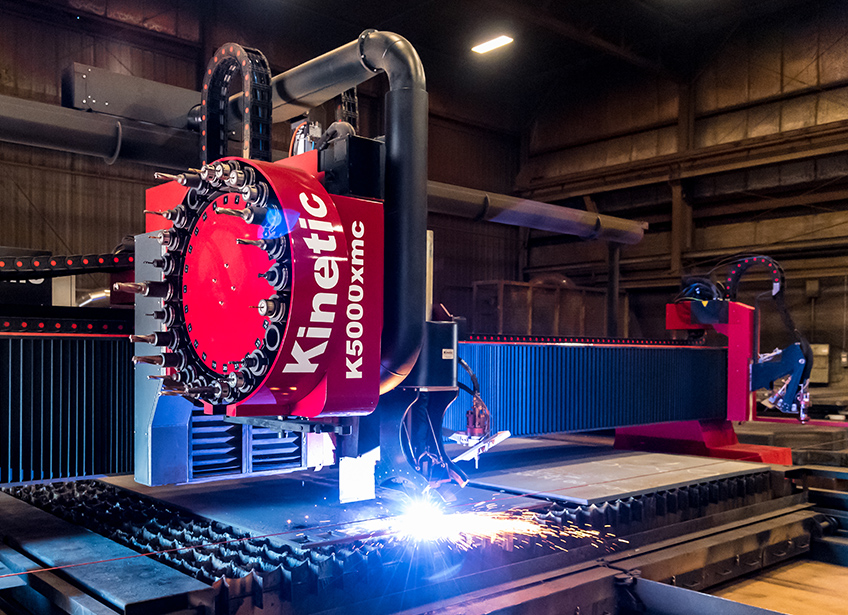

| Cutting Table | 16′ x 40′ |
|---|---|
| Automatic Spindle Tool Changer | 24 separate tools |
| Production drilling | Up to 4″ (100mm) diameter; 8″ thick |
| Tapping capacity | Up to 1-1/4″ (M32) |
| Milling capability | Face and end milling; Interpolation of large holes |
| Plasma capability | Standard right angle plasma cutting; Dynamic angled plasma beveling |
| Marking capability | Percussion marking for part identification |
Need help with an unfamiliar term? Utilize our glossary to lookup the definition.
REQUEST QUOTE
With its tilting laser head, this 3D cutting machine delivers straight and bevel cutting on tubes up to 28 feet long and 27 lbs/ft heft with guaranteed precision and fast turnaround and no order minimums from 1 to 1000+ pieces.
A steady diet of continuously fed steel and stainless bar stock keeps these 20 HP and 15 HP monsters humming and keeps customers satisfied. Serving up custom cuts of 5/8" up to 6" rounds and rectangles.
